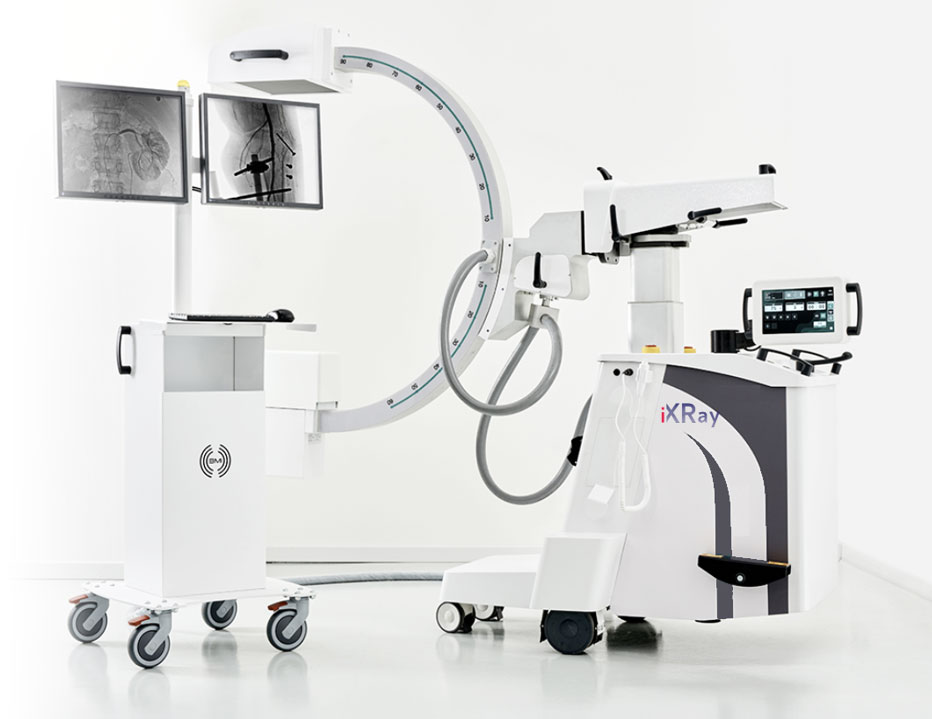

iXray Surgery R
Mobile C-Arm Diagnostic System
The fluoroscopic system represents a mobile C-arm type diagnostic X-ray system intended for fluoroscopic imaging, especially during orthopedic procedures, surgery, urology, traumatology and emergency departments, endoscopy, fluoroscopy, and limb examinations.
iXray Surgery R The fluoroscopic system represents a mobile C-arm type diagnostic X-ray system intended for fluoroscopic imaging, especially during orthopedic procedures (high-definition imaging for positioning implants and screws), surgery (reliable support during laparoscopic, endoscopic, and vascular procedures), urology, traumatology and emergency departments, endoscopy, fluoroscopy, and limb examinations.
An aluminum C-arm mounted on recirculating ball guides for continuous and extremely smooth operation. Allows operation in a fully horizontal position, which traditional bearing systems cannot support.
Extremely light and smooth movement along all axes, even under conditions of extreme tilt. Flexible and precise lateral movement thanks to an ergonomic handle, ideally suited for use in operating rooms.
- 10-inch touchscreen with intuitive graphics.
- • Simplified workflow for all procedure types.
- Full DICOM functionality.
Technical specifications:
Mains voltage: 230 V AC ±10%. Output power: 5 kW. Frequency: 50/60 kHz. Tube operating voltage: 40 - 120 kV. Focal spots: 0.3/0.6 mm.
Radiography Mode:Digital snapshot: 40-120 kV, 25 mA-100 mA.
Fluoroscopy mode:
• Continuous mode: 40 kV–120 kV, 0.2 mA–5.0 mA.
• Pulse mode: 40 kV–120 kV, 1 mA–12.0 mA (pulse frequency: 1, 2, 4, 8, 10, 12, 15, 25, 30 frames/s)
Flat panel X-ray Detector:
Scintillator material:Cesium Iodide (CsI).
Active imaging area: 236.5 mm x 236 mm.
Resolution: 3.2 lp /mm (1x1), 1.6 lp /mm (2x2).
Pixel count: 1536 x 1536.
Pixel sampling resolution (digitization depth): 12 bits.
Pixel pitch: 154 μm.
Source to Image Receptor Distance (SID): 1124 mm.
Free space: 880 mm.
Orbital rotation: 150° (-58, + 92)°.
Horizontal movement: 210 mm.
Vertical travel: 500 mm.
Monitor diagonal: 10 inches.
DAP: display of measurement results on the monitor.
Image Processing Station: 2 color LCD displays 19 inches + 1 touch screen 10 inches on the C-arm.
The system consists of the following components:
● X-ray generator 32 kW.
● X-ray tube with a rotating anode. Focal spot - 0.6/1.3 mm.
● Control console - color LCD display based on thin-film transistors with a 10" touch screen.
● Remote control.
● Digital flat-panel X-ray detector 36x43 cm wireless.
● Software with DICOM support.
● Portable laptop.
