IMAX 5200

Alt Text

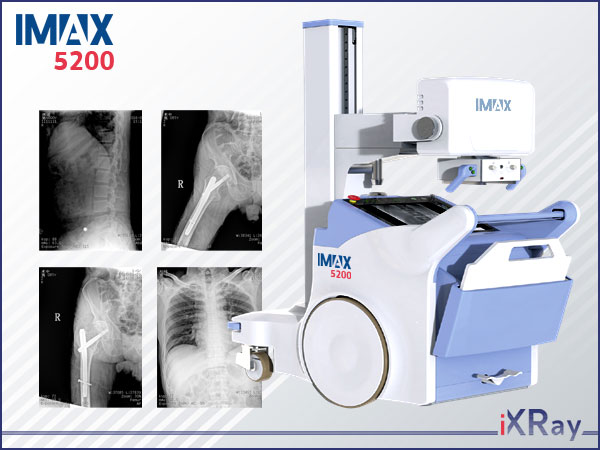

IMAX 5200
Mobile digital radiography system

High definition image, easy to clinical diagnosis

Futures & Benefits

Light and flexible collect sharp image

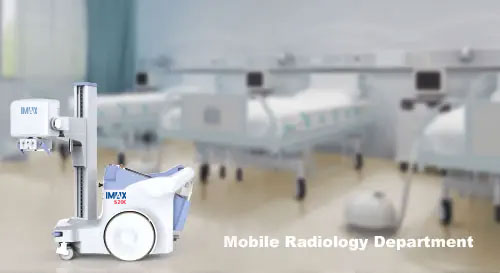

Widely used in radiology, ward, ICU, operating room

● Compact frame, flexible movement.

● Digital image, sharp and delicate.

● Super capacitor, environmental protection.

● Electric power-assisted, strong endurance.

● Graphical interface, easy operation.

● Ultrasonic ranging, digital display.

High definition image, easy to clinical diagnosis

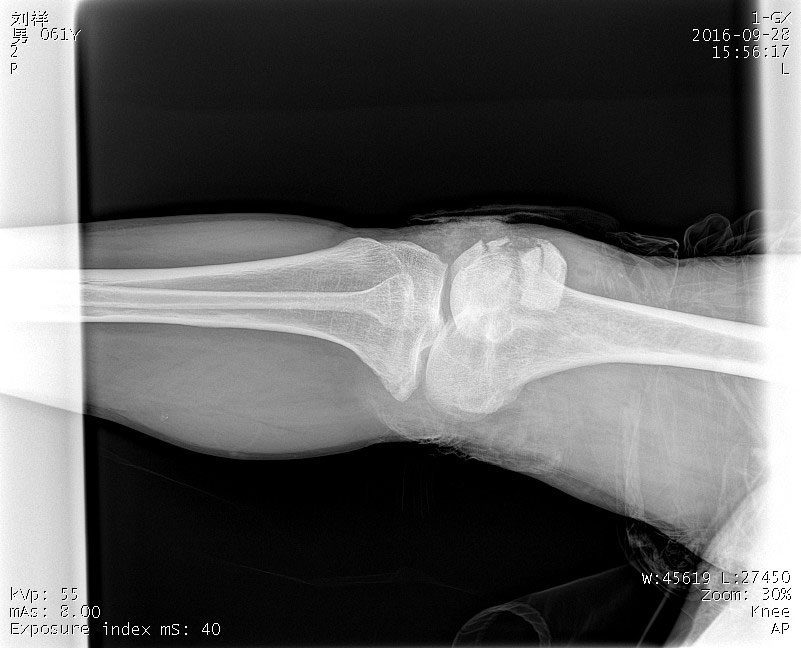

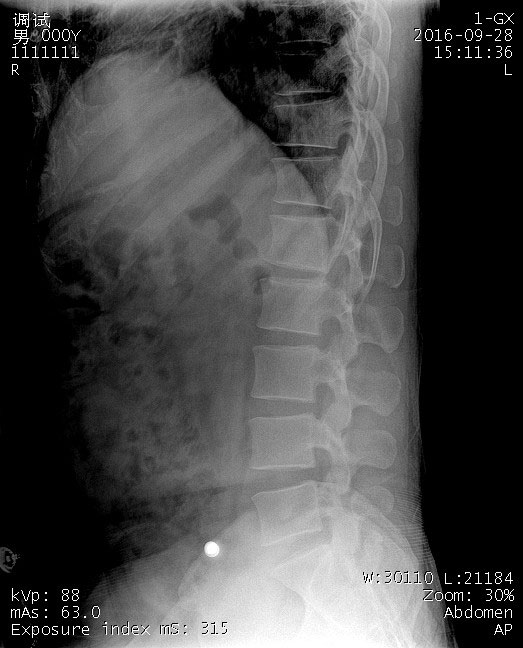

High quality portable FPD, outstanding acquisition conversion performance, the sharp clinical image can be guaranteed. It can realize digital radiography of all human body parts friendly, like head, limbs, chest, spine lumber and so on.


Power persistence flexibility and convenience

Two independent power supply, one for motion, the other for image, long battery endurance.

Super electric capacity

Equipped dedicated super capacitor as the power supply for radiography mode, without direct power supply, and convenient in wards, consulting room. Image collecting is more stable and reliable. long-term working with short charging(finished within 20 minutes).

Large capacity lithium battery pack

Electric power assisted, helping move continuously 20Km by a single charge, long-distance endurance can be satisfied.

Dual motor drive

Electric power assisted motor drive, double wheel driven, zero radius turning. Convenient, flexible to move.


Intelligent operating system

Humanization design, building good experience of interacting.

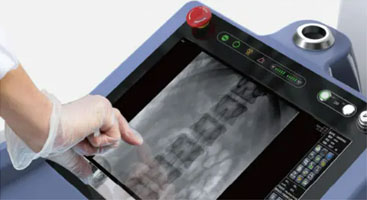

Graphical control interface

Large size and flushbonading human graphic LCD touch screen design. Simple but intuitive interacting interface. With automatically adjustable parameters of adults and children in the aspect of multiple body area, positions, shapes.

Double exposure model design

Hand brake for close range exposure, wireless remote control for long-distance exposure. It is easy to realize compartment operation. Convenient for clinic use.

Integrated workstation

Integrated image acquisition system and X-ray generator control, ensure the efficiency of operation.
A variety of post-processing algorithms and techniques, While the image quality is greatly improved, the radiation dose is significantly reduced. The operation interface has a variety of functions such as patient management, image collection, processing, and observation and case report. Support DICOM3.0 standard protocol and PACS workstation for image transfer.


Flexible movement – accurate positioning

Multiangle flexible control, meet the needs of a variety of bedside photography.

Fast and accurate positioning

There are 4 one-key unlock buttons, one key to unlock a variety of linkage, namely loose or lock, easy to operate. Wide range frame movement, to meet the clinical needs of a variety of positioning.

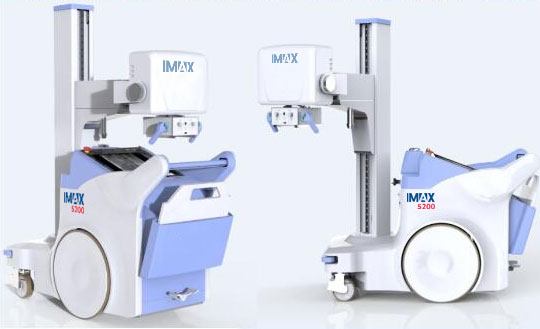

Compact machine flexible movement

Column rotation design, wide coverage. Large diameter main wheel, smooth movement, compact and flexible.

Safety and anti-collision design

The front of the machine is equipped with automatic anti-collision protection device to ensure the safety of personnel and machine.

Mobile X-ray system IMAX7000AToshiba high-frequency X-ray tube with a fixed anode
focal spot0.6/1.2 mm
anode rotation speed3000 rpm
the heat capacity of the anode900 kJ
mAs range0,4 ~ 630
maximum output power25 kW
the frequency of the generator60 kHz
anode inclination angle120
tube filtration≥0.5 mmAl
maximum current200 mA
maximum voltage40-125 kV
tripod movement range500-1800 mm
the maximum output window of the collimator340x340 mm (at a distance of 1 m)
flat panel detector (distribution capacity 3.5 par.l./mm)available
built-in image vieweravailable
motorized movementsavailable
image processingavailable
power supply220V
