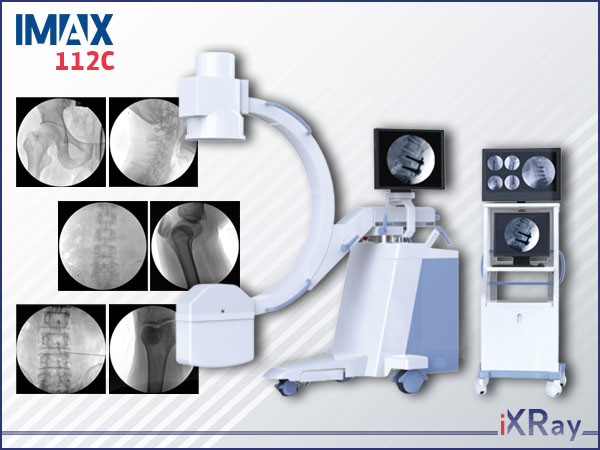

IMAX 112C
High frequency mobile C-Arch system

High definition image system make the crystal-clear image

Futures & Benefits

High precision digital pulse control technique / More details – less dose

Pulse Control ● Digital Radiography ● Auto Fluoroscopy

● High frequency high voltage x-ray generator and high precision digital pulse control technology ensure excellent image with low skin dose.

● Digital radiography function, no more film-screen system, simplify the operate process.

● Maximum optimize the image brightness and definition depend on the kV/ mA auto trace function.

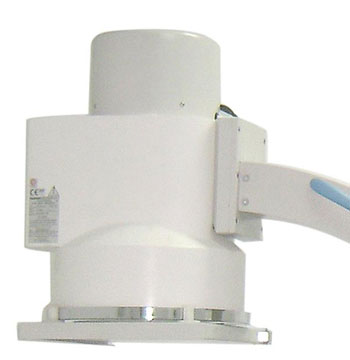

● Electric controlled rotated beam limiting device can satisfy multi-angle and multi-directional anatomical display requirements.

High definition image system make the crystal-clear image

Digital workstation for the complete examination workflow

● Dicom 3.0 network interface for integration with clinical network, PACS, RIS.

● Dual foot brake design , you can operate the machine even you are away from it.

● Dual monitor design, real-time displaying the clear clinical image both inside and outside the operating room.

Friendly operate interface & design

● Human graphic LCD touch screen system

● Hand controller design support long distance exposure

Flexible C-Arm design

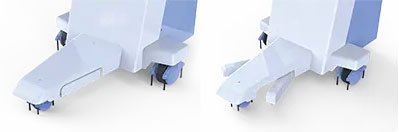

● Divertible main wheel together with direction wheels make movement more flexible.

● Electric support arm make the movement of machine more stable during moving.

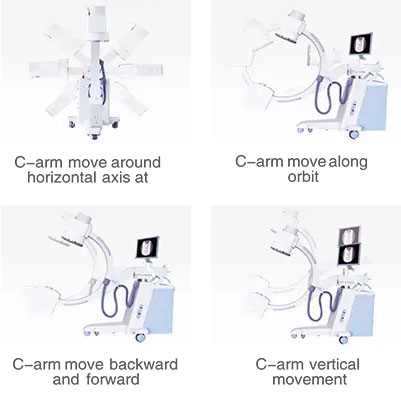

All angles rotation

Digital megapixels image system

● High quality image intensifier.

● High definition CCD camera.

● High-resolution high-brightness monitoring system.

Mobile X-ray system IMAX 112CTOSHIBA EOC and tube
focal spots0.3/1.5 mm
maximum output power5 kW (40 kHz)
anode inclination angle150
total emitter filtration≥3 mmAl
Mode of automatic fluoroscopytube voltage 40-120 kV, current 0.3-4 mA
Mode of manual fluoroscopytube voltage 40-120 kV, current 0.3-4 mA
Mode of manual fluoroscopytube voltage 40-120 kV, current 4.1-8 mA
CCD TV camera</tdwith high resolution
motorized vertical movement400 mm
the distance from the emitter to the receiver960 mm
orbital displacement±120°
horizontal axis of rotation±180°
vertical axis of rotation±12°
horizontal movement200 mm
cassette holder240x300 mm
for control in scopy modedouble pedal
monitormedical grayscale LCD 19″
for database management and image processinginclude PC
medical monitormedical grayscale 17 and 23 inches
overall dimensions240x81x221 cm
weight370 kg
power supply220V
Image processing
  • horizontal/vertical display
  • positive/negative
  • freezing of the last frame
  • screen indication
  • continuously adjustable recursion

The technical characteristics, digital technologies and high resolution of the X-ray image of the IMAX 112C make it possible to efficiently and productively both in daily routine examinations and surgical interventions, as well as in complex operations in such clinical areas as cardiovascular and orthopedic surgery.

Areas of application of IMAX 112C:

  • Traumatology. Diagnosis of the injury, development of treatment tactics and control over the course of the operation.
  • Orthopedics. Diagnosis and correction of pathology of the musculoskeletal system.
  • The maximum working time without a break is 1 hour 30 min.
