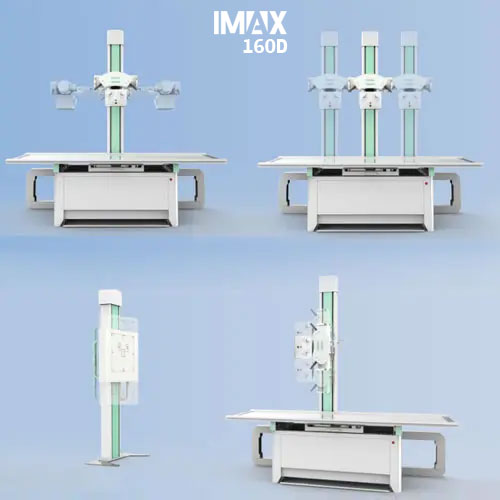

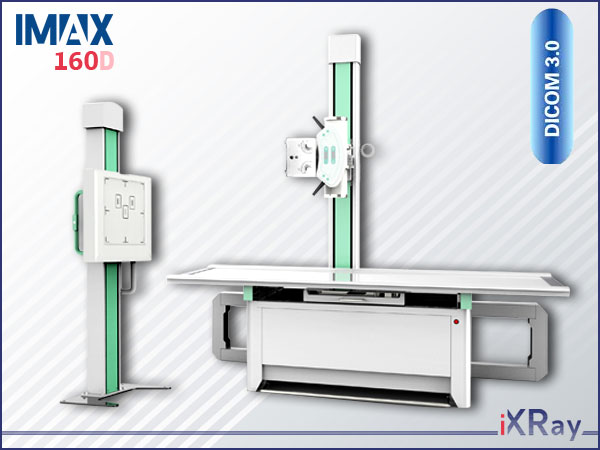

IMAX 160D

Alt Text

IMAX 160D
High frequency digital radiography system

High definition images

Futures & Benefits


Economic flat panel detector DR, specially used in primary hospital, clinic, medical center

● High frequency digital radiography system

Digital system for different anatomic regions, such as head, chest, abdomen, limbs etc.

● World-class flat panel detector technology

High-quality portable flat panel detector can bring high definition images and provide good security and reliability.

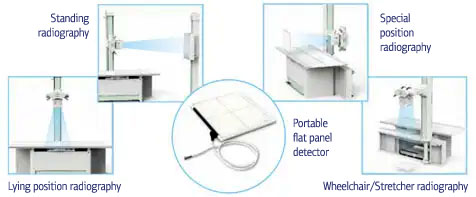

Flexible projection angle

Flexible bed system can achieve the conventional lying position,standing radiography, but also achieve the portable flat panel detector wheelchair radiography, stretcher radiography and other special posture radiography.


High-definition images


Portable digital system

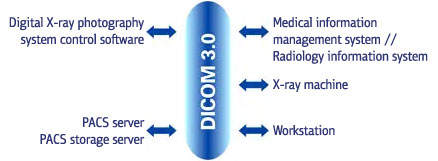

Digital image network system workflow


DICOM 3.0 // Supporting for obtaining a list of tasks from HIS/RIS // >Supporting DICOM PACS multi-node storage // Supporting for DICOM image print // Supporting for DICOM MPPS // >Tissue equalization. Preset several examination modes to meet different departments use. ESA (exam specific algorithm)

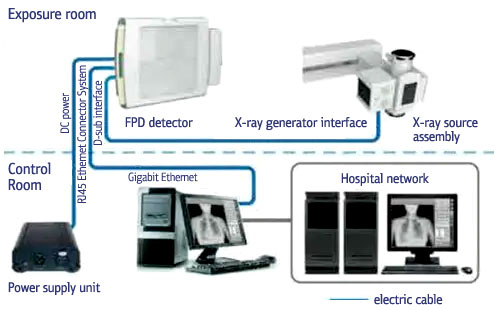

Convenient digital image network

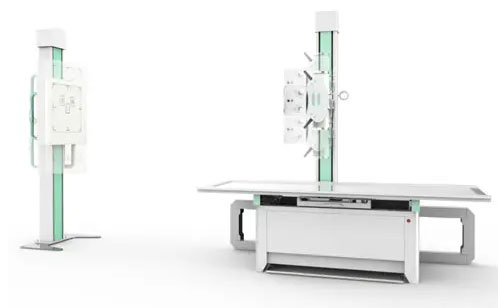

X-ray diagnostic systemIMAX 160D
High-frequency X-ray power supply device with a microprocessor control and self-diagnosis system
  • power supply network 380 V, three phases
  • power 50 kW
  • frequency 400 kHz
  • voltage range 40-150kV
  • anode current range 10-630mA
  • mAs range 0.1-630
  • time range 0.001-10 sec
  • tube protection system against overload
  • 1000 anatomical programs
  • 2-point programming system - kV-mAs
  • 3-point programming system - kV-mA-msec
  • AEC (Automatic Exposure Control)
X-ray table of images
  • the table top is covered with impact-resistant glass
  • the maximum weight of the patient is 220 kg
  • floating table top in 4 directions with electromagnetic brakes
  • the size of the deck is 2200x800
  • total filtration of 0.5 mmAl
  • sizes of supported cassettes are from 13x18 to 43x43 cm
  • the rail allows the column to move further than the table, this allows you to take pictures outside the workplaces
  • rotation of the column with the emitter +/-1200
Vertical photo rack
  • fixation of the cassette receiver is carried out with the help of electromagnetic brakes
  • sizes of supported cassettes are from 13x18 to 43x43
  • focal length 1500 cm
X-ray emitter
  • sizes of focal spots 0.6x0.6mm. and 1.2x1.2 mm
  • the maximum voltage on the tube is 150 kV
  • the angle of inclination of the anode is 12 degrees
  • anode rotation speed 2800 revolutions/min.
  • the heat capacity of the anode is 210 kJ
Workstation with a flat panel detector
  • flat panel detector is wireless
  • distribution capacity of 3.4 par/l/mm
  • size 43x43 cm
  • monitor 23 inches
  • management of the patient database
  • correction of histograms
  • scaling and cropping of images
  • brightness contrast
  • negative/positive
  • printing and recording on CD/Flash
  • full support for DICOM 3.0
