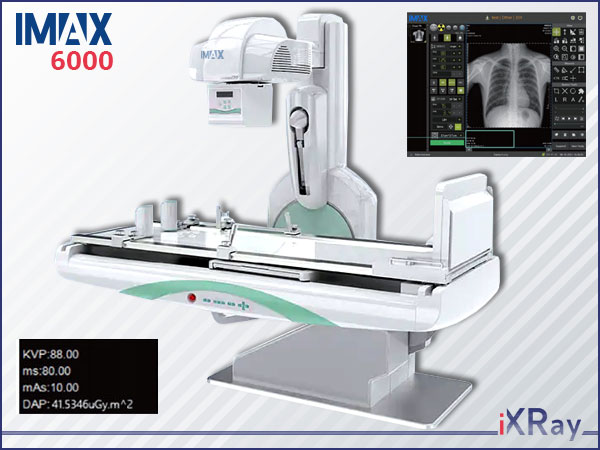

IMAX 6000
Dynamic FPD radiography and fluoroscopy system

Dynamic FPD radiography and fluoroscopy system

Futures & Benefits

High performance and intelligent

Digital Radiography

● Applicable for all body parts photography

Digital fluoroscopy

● Applicable for all body parts fluoroscopy check

Digital radiography with contrast agent

● Gastrointenstinal tract radiography, salpingography.

Precise Digital Spot Film

● Obtain high-definition images and accurately capture lesions during fluoroscopy, avoiding missed diagnoses or misdiagnosis caused by blind shots.

360° rotation foot pedal

● Improve workflow efficiency.


Pulsed fluoroscopy – Low dose and sharp images

● Instant exposure, low noise

● Low dose, less radiation harm

● Multiple fluoroscopy modes

● Instant exposure

● Lower dose to protect doctors and patients

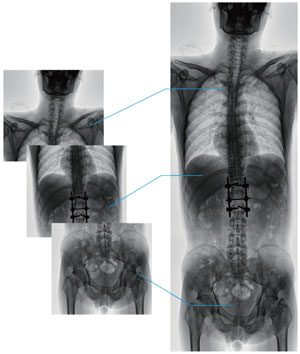

Automatic stitching function (optional)

● Full spine, full lower limbs panoramic images.

● Accurate measurements for preoperative planning and postoperative review in deformity correction surgery.

● One-step radiography, providing reliable diagnostic basis for clinical practice.

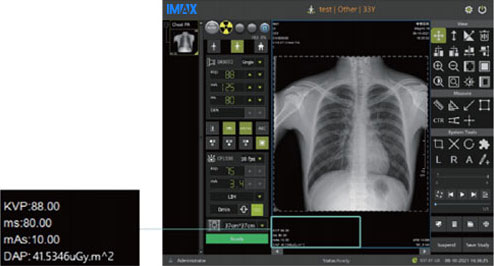

DAP (optional) – Dose visualized, safety assured (optional)

● Intelligent dose monitor system Friendly to user’s health.

● The pioneer usher in intelligent radiation dose monitoring system.

● Synchronous dose monitoring system of hardware and software, guaranteeing more accurate diagnosis.


AEC (optional)

● High level ionization chambrer

● Intelligent control of exposure, more efficient

● Intelligent control of light sensitivity

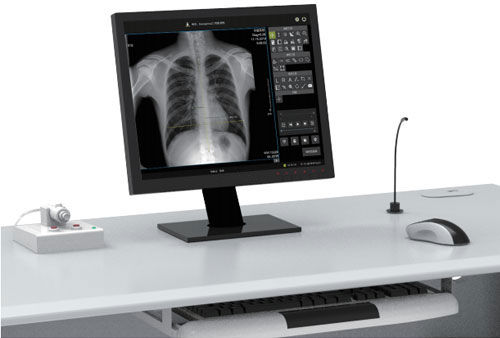

Intelligent operation

● Human-friendly workstation design

● Intelligent control, visual display

● Convenient and efficient.


Stable and reliable image chain

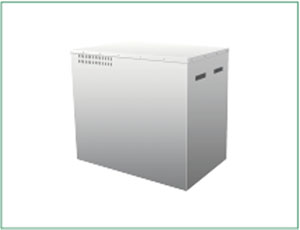

Self-developed ultra-high frequency and high voltage generator

● Good X-ray source

● Strong penetration ability

● Low-dose radiation

● Stable performance

● High-quality image

● High efficiency

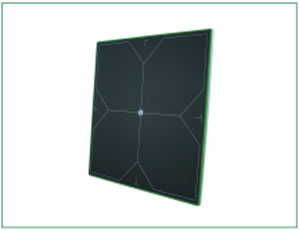

Flexible flat panel detector

● Standard high-resolution dynamic flat-panel

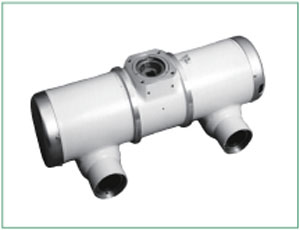

lmported high-quality X-ray tube

● Large heat capacity

● High rotate speed of X-ray tube

● Suitable for long time and high-intensity work

● Have long service life

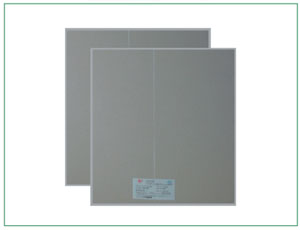

Removable dual grid

● Removable grid for reducing radiation

● Designed for pediatrics

X-ray diagnostic system IMAX 6000
High-frequency X-ray feeding device with a microprocessor control and self-diagnosis system
  • power supply network 380 V, three phases
  • power 65 kW
  • frequency 440 kHz
  • voltage range 40-150kV
  • anode current range 10-800mA
  • time range: 0.001-10 sec
  • 0,1–1000 mAs
  • tube protection system against overload
  • 1000 anatomical programs
  • 1-point programming system
  • 2-point programming system - kV-mAs
  • 3-point programming system - kV-mA-msec

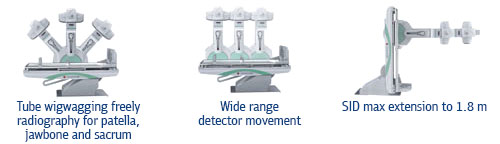

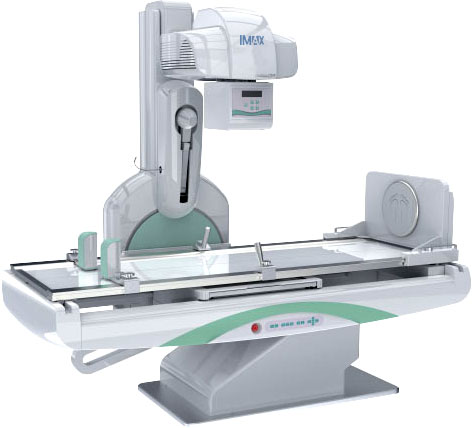

Remotely controlled diagnostic rotary table-stand with an X-ray emitter, a motorized deck, and a compression device
  • table tilt angles from +90 to -15 degrees
  • moving the table top along 900 mm
  • range of lateral movement 220 mm
  • the range of vertical movement is 1000 mm
  • changing the focal length to 1800 mm
  • the size of the table top is 2100x800 mm
  • the maximum permissible weight of the patient is 200 kg
  • touch display for controlling the system
  • intercom
X-ray emitter Toshiba E7869X
  • sizes of focal spots 0.6x0.6mm. and 1.2 x 1.2 mm
  • the maximum voltage on the tube is 150 kV
  • the angle of inclination of the anode is 12 degrees
  • the speed of rotation of the anode is 10,000 revolutions/min.
  • anode heat capacity 400kHU
Dynamic flat panel detector (Scopia and graphics measuring 43x43 cm)
  • technology based on a flat panel detector
  • size 43x43 cm
  • built-in type
  • spatial resolution of 3.7 pl/mm
  • matrix size 2816x2186
