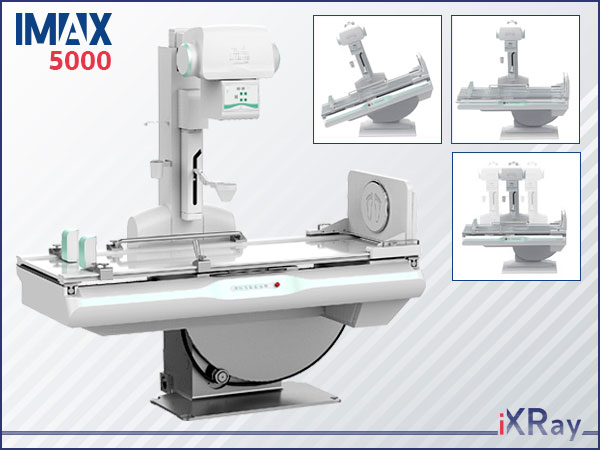

IMAX 5000
Dynamic FPD Radiography and Fluoroscopy System
Futures & Benefits

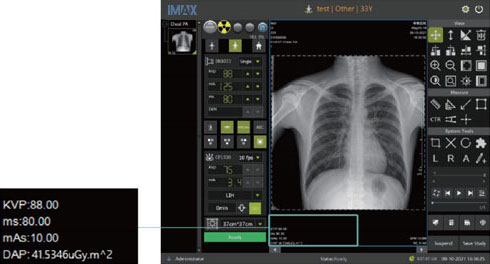

DAP - Dose visualized, safety assured (optional)
● The pioneer usher in intelligent radiation dose monitoring system
● Synchronous dose monitoring system of hardware and software, guaranteeing more accurate diagnosis
Pulsed fluoroscopy – Low dose and sharp images
● Multiple fluoroscopy modes
● lnstant exposure
● Lower dose to protect doctors and patients

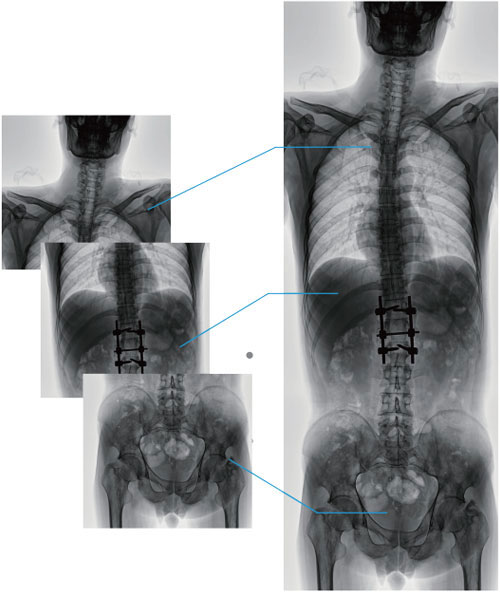

Automatic stitching function – accurate and precise (optional)
● Panoramic images of full spine, full lower limbs
● Accurate measurements of preoperative planning and postoperative surgery
● One-step radiography, providing more reliable diagnostic basis for clinical practice

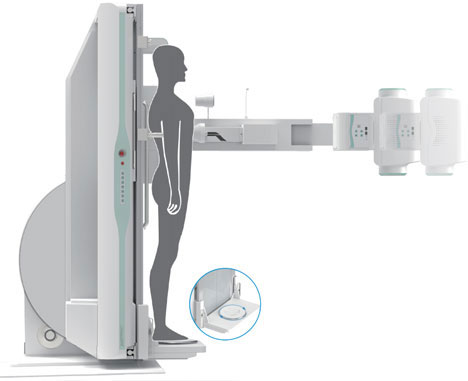

SlD electrically stretched to 1.8m
● Meeting special radiography needs such as standard chest radiography and occupational pneumoconiosis examinations.
360° rotating foot pedal (optional)
● The load-bearing capacity up to 200KG, safely and easily satisfy the inspection needs of various body types.
Digital radiography
● Suitable for radiography of all body parts
Digital fluoroscopy
● Suitable for fluoroscopy of all body parts
Digital Gastrointestinal Angiography
● Esophageal angiography,upper gastrointestinal angiography, total gastrointestinal angiography, salpingography, etc.
Precise digital spot imaging
● obtain high-definition images and accurately capture lesions during fluoroscopy, avoiding missed diagnoses and misdiagnosis caused by blind shots.
Table rotates in a wide range to meet the needs of different body positions
Table horizontally moving, reduce movement of patients
The spot film device move longitudinally in a wide range, cover whole body parts' examinations
Stable and reliable image chain
Self-developed ultra-high frequency and high voltage generator
● Good X-ray source
● Strong penetration ability
● Low-dose radiation
● Stable performance
● High-quality image
● High efficiency
Flexible flat panel detector
● Standard high-resolution dynamic flat-panel detector
lmported high-quality X-ray tube
● Large heat capacity
● High rotate speed of X-ray tube
● Suitable for long time and high-intensity work
● Have long service life

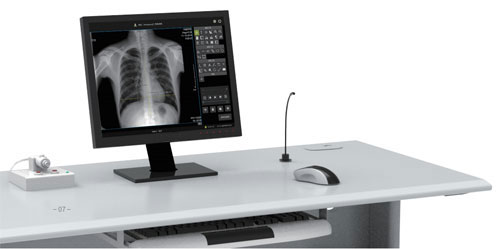

"Symphony" Image post- processing system
● Great image post- processing function
● Only one-click can finish your work

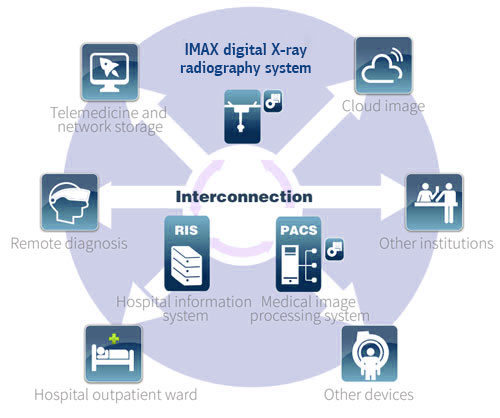

Cloud image interconnection
Pre-set various examine modes
● The system brings convenience to staff by multiple intelligence control modes, simple and fast control interface and efficient image collection will accelerate the speed and improve accuracy of clinical radiography.
Pre-set various examine modes
● Meet the different requirements of outpatient, emergency,physical examination on different cases.

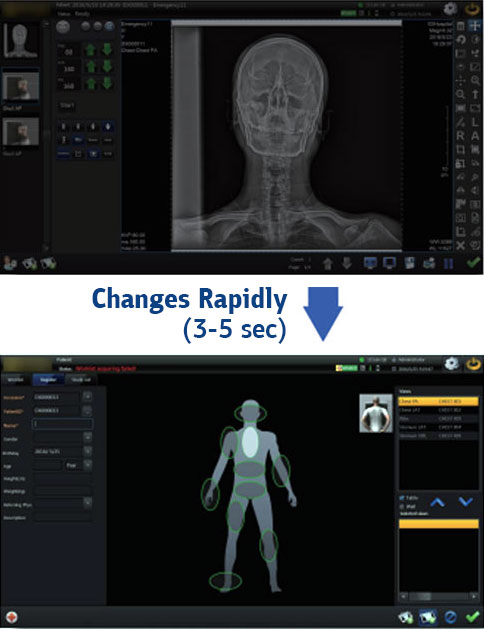

Fast image acquisition
● High standard software system, faster image acquisition, improved workflow continuity and overall inspection quality. 3-5 seconds speed converslon, 1-2 seconds faster than similarDR, offering faster examine experience for clinic.
● Fast automatic image processing.
● Automatic image output.
CE-Certifications, lSO approved
● The system can be maintained remotely, it can perform fault self-diagnosis and display the fault code quickly and accurately determine the fault status and has self-protection function.
● lt can share information with PACS system, bring benefits for remote diagnosis.
