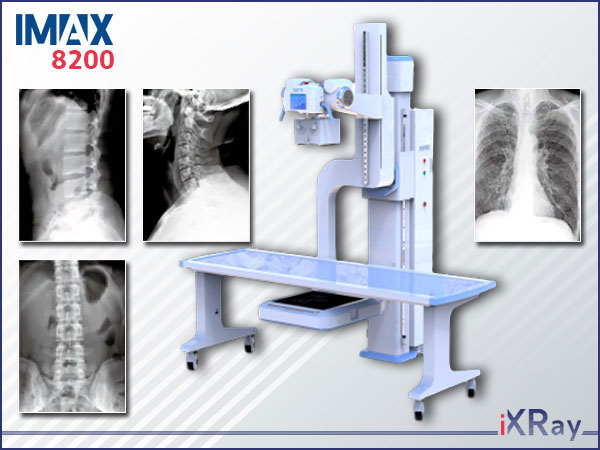

IMAX 8200
High frequency digital radiography system
Futures & Benefits
High frequency digital radiography system
● The high imaging output of 50kW or 65kW allows short-time radiography, virtually eliminating any motion burring.
● Flexible mechanical design ensures the intelligent, friendly and convenient operation.
● Powerful network function satisfy the requirements all levels of hospitals.
● Intelligent and friendly user interface make it easy for new operator.
● Convenient image processing system and high definition medical display system provide efficient and accurate diagnosis.
Sharp image support your accurate diagnose
50/65kW generator make us different, our generator assures the best image in every operating condition along with reduced patient dose and extend X-ray tube lifetime.
X-Ray source assembly
Our generator provide the right amount of penetration, reducing exposure times and retakes. Automatic exposure control (AEC) enables auto selection of radiographic factors, saves time, eliminates retakes, increases diagnostic capability arid lowers the radiation dose. (Optional)
Mechanical system
● Multi-automatic protection and error code indicator ensure convenient maintenance.

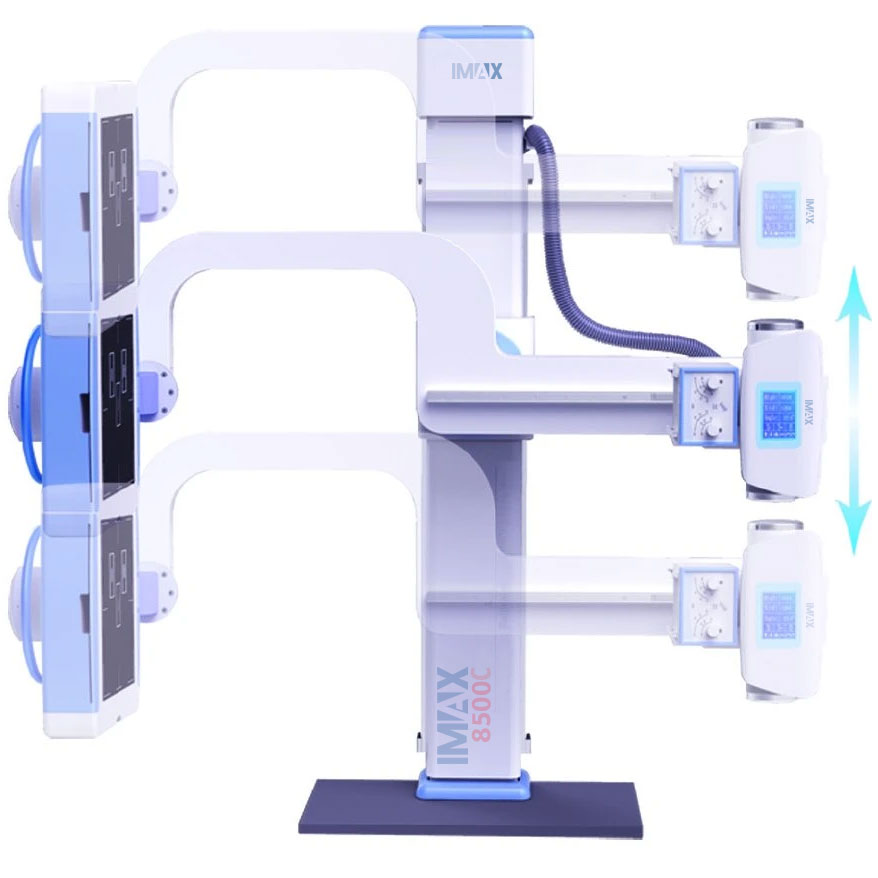

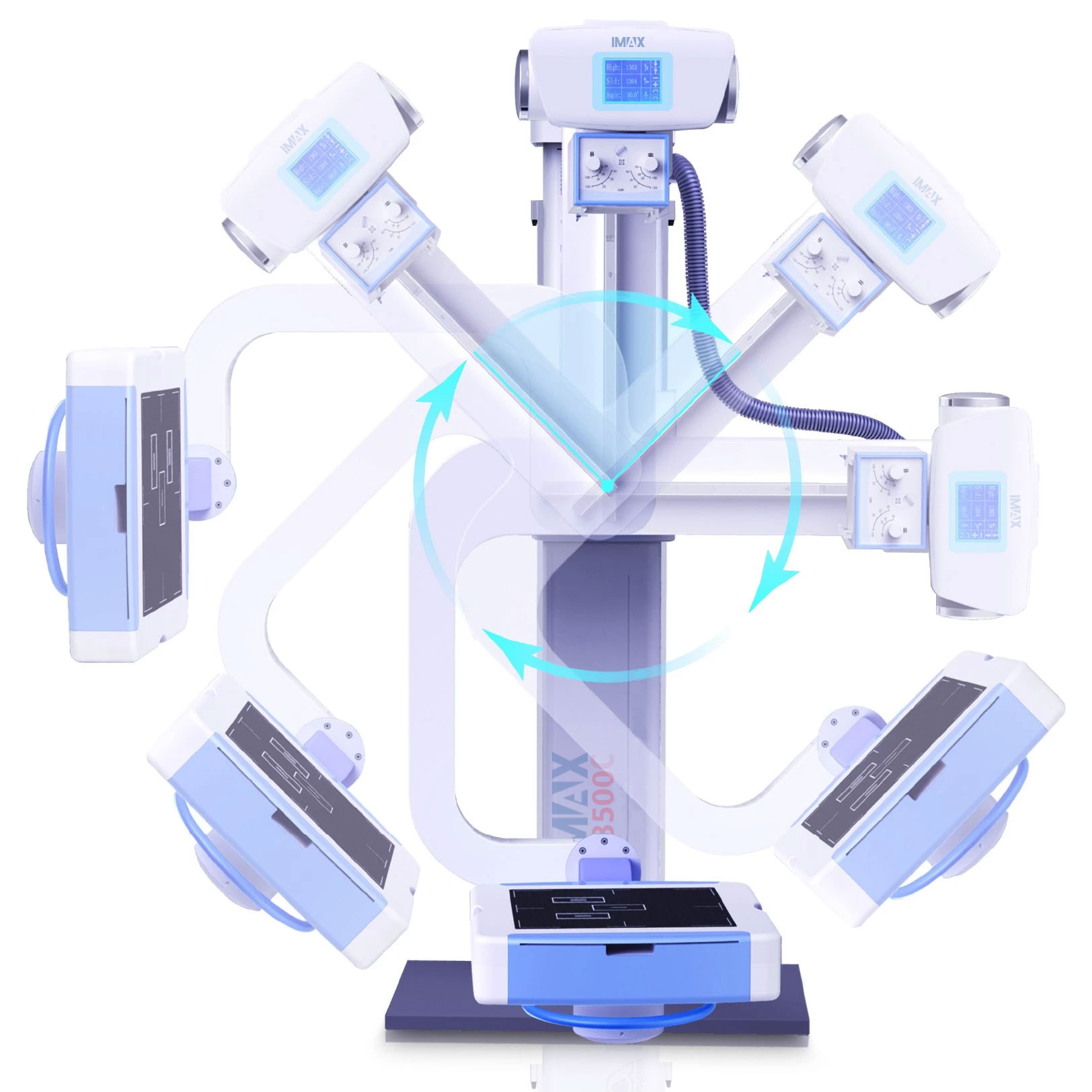

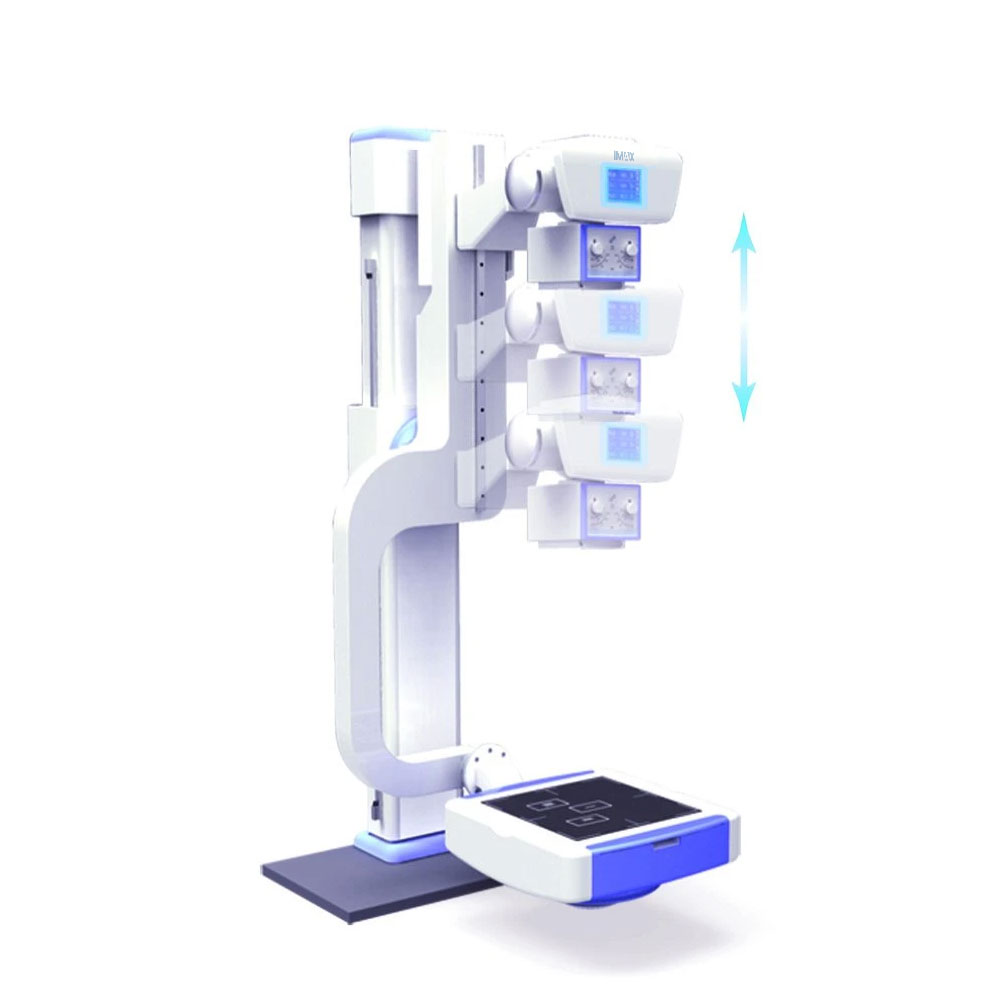

● Attractive design U-arm frame, fully automatic motorized movement, widely used for standing and decubitus positions.
● Safety features protect against collision with patient and obstacles. Multi kinds of control method provide instant access to patient data and key parameters.
DR-detector
● Flat panel detector improvse your workflow, exam speed and comfort with efficiency.
● A-si detector with CSI screen,excellent spatial resolution
● Active area: 17”x17”.
U-arm radiography desk (optional)
● Equipped with build-in baftery for motorized movement.
● Infrared sensor design, feet trigger, releases your hands.
● Low-absorption tabletop materials.
● Sensor type electromagnetic lock for table top movement.
● All-direct movement tabletop, easy to position.
X-ray diagnostic system IMAX 8200 | |
U-arc |
|
High-frequency X-ray feeding device with a microprocessor control and self-diagnosis system |
|
Control panel |
|
Toshiba X-ray emitter |
|
Flat panel detector |
|
