iXray Vision 50

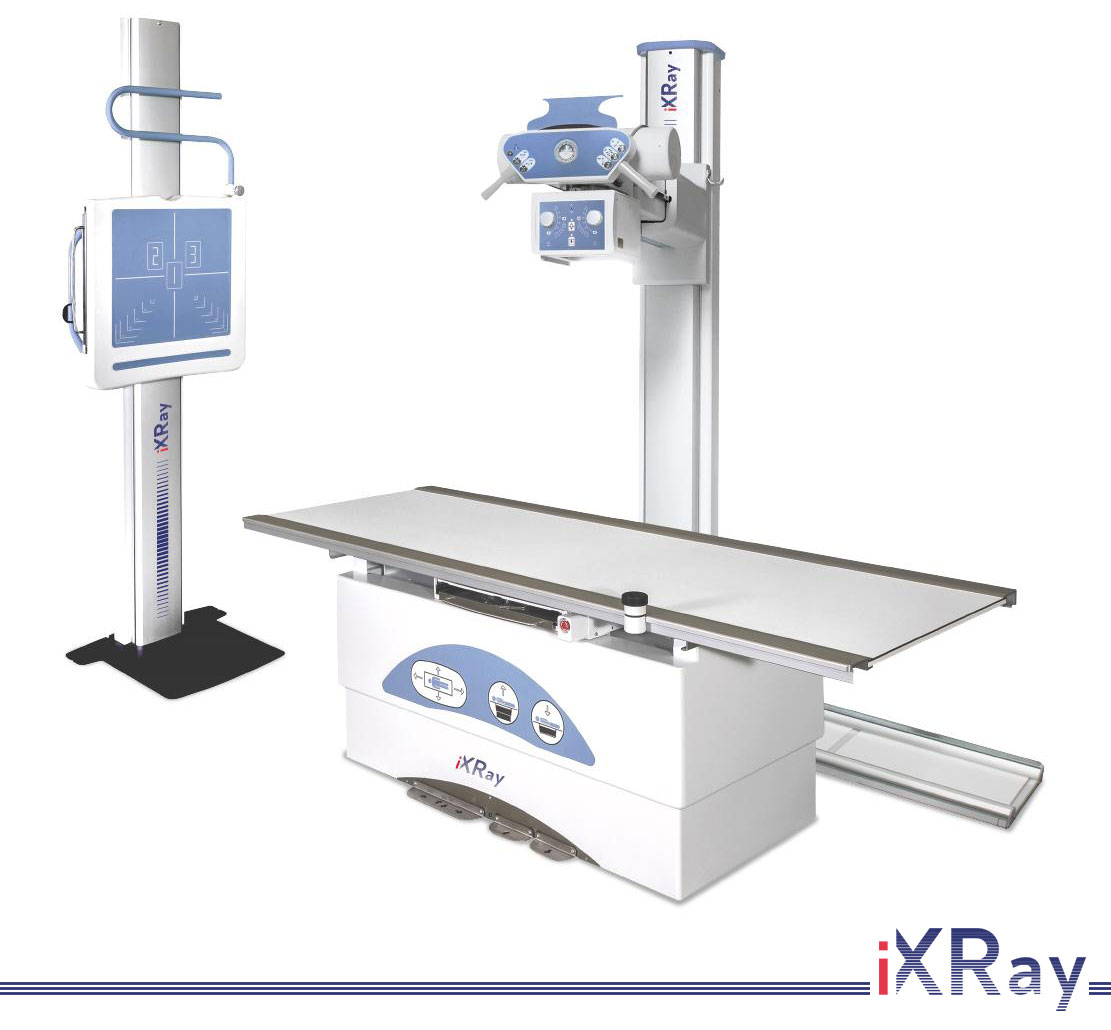

iXray Vision 50 is a premium stationary X-ray imaging system. For its functional capabilities, the system is connected to the X-ray diagnostic complex for two working places (1st place - the shooting table and 2nd place - vertical shooting position). The system allows us to carry out the full range of radiographic examinations. Photos can be captured either on an X-ray cassette with a melting pot or on a flat panel detector. The system is equipped with a table with a fixed height of 730 mm, a floating deck and two digital X-ray detectors 43x43 cm, located at the table and stand.

● 50 kW X-ray generator with capacitor storage.

● X-ray tube.

● X-ray imaging table with emitter column.

● Vertical X-ray imaging stand.

● Digital flat-panel X-ray detector (in the vertical stand and in the imaging table).

● X-ray raster.

● Solid-state NPP exposure control chamber (in the table and vertical imaging stand).

● X-ray collimator.

● Automated workstation (AWS) for the X-ray technician with X-ray generator exposure control.

● DICOM-enabled software.

EVS 4343A – Digital flat panel detector measuring 43×43 cm (wired connection).

● Fast workflow, image acquisition time 2.9 sec.

● Removable handle.

● Convenient and ergonomic design.

● TRUVIEW®ART.

TRUVIEW®ART – intelligent digital radiography processor increases image contrast by 30% or more, has an improved ability to detect microanomalies in the lungs, chest and heart.

Basic technical characteristics

• The power of the generator: is 50 kW.
• Power source: 1 phase 230 V.
• Photo table type: with a fixed height of 730 mm and a floating deck.
• Voltage on the tube (max): 150 kV.
• The heat capacity of the anode: 300 kHU.
• The focal spot size: 0.6 mm /1.2 mm.
• Type of detectors (EVS 4343A): a-Si, Csl.
• The size of the detectors (EVS 4343A): 43×43 cm.
• The type of detector connection (EVS 4343A): wired.
• The number of detectors in the delivery set: two (one in the image table, the second in the image rack)
