iXray Flex 50
Diagnostic X-Ray System
Premium stationary X-ray imaging system

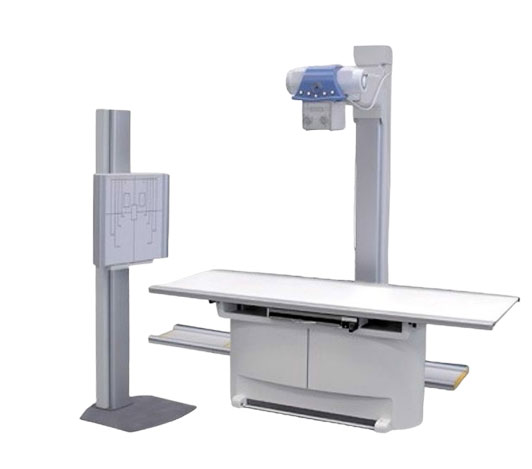

The iXray Flex 50 is a premium stationary X-ray system. In terms of functionality, the system is a two-workstation X-ray diagnostic system (the first workstation is the imaging table and the second workstation is the vertical imaging stand). The system enables a full range of X-ray examinations. Images can be acquired either on an X-ray film cassette or on a flat-panel detector. The system is equipped with a table with a fixed tabletop height of 730 mm, a floating deck, and a wireless (WiFi) digital X-ray detector measuring 35 x 43 cm, allowing for diagnostic imaging on both the tabletop and the stand.
The system consists of the following components:
● 50 kW X-ray generator.
● X-ray tube.
● X-ray imaging table with emitter column.
● Vertical X-ray imaging stand.
● Digital flat-panel X-ray detector (wireless connection via WiFi).
● Solid-state NPP exposure control chamber (in the table and vertical X-ray imaging stand).
● X-ray collimator.
● Automated workstation (AWS) for the X-ray technician with X-ray generator exposure control..
● DICOM-enabled software.
VS 3643W – wireless flat-panel detector measuring 35x43 cm.
● Easy to move from the imaging table to the vertical X-ray imaging stand and back.
● Fast workflow, image acquisition time of 3.6 seconds.
● Wireless charging system.
● OLED display and 3 buttons.
● Stable wireless connection
● IP54 protection rating.
● TRUVIEW®ART.

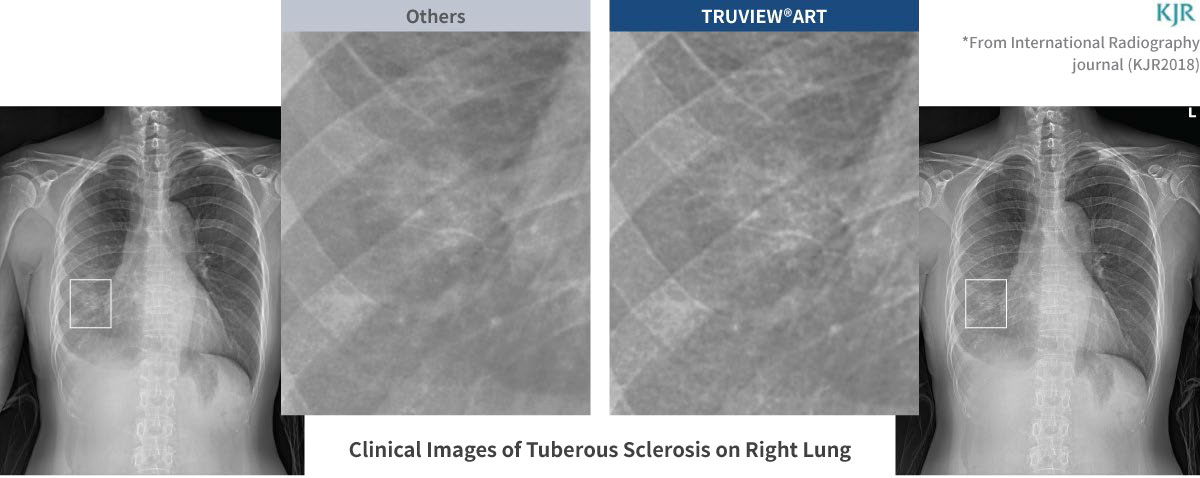

TRUVIEW®ART – intelligent digital radiography processor increases image contrast by 30% or more, has an improved ability to detect microanomalies in the lungs, chest and heart.
Basic technical characteristics
- Generator power: 50 kW.
- Power supply: 3-phase 400 V.
- Imaging table type: fixed height 730 mm with floating deck.
- Tube voltage (max): 150 kV.
- Anode thermal capacity: 230 kHU.
- Focal spot size: 0.6 mm / 1.2 mm.
- Detector type (EVS 3643W): a-Si, Csl.
- Detector size (EVS 3643W): 35 x 43 cm.
- Detector connection type (EVS 3643W): wireless (WiFi connection).
- Number of detectors included: one (easily transferred from the imaging table to the vertical imaging rack and back)
